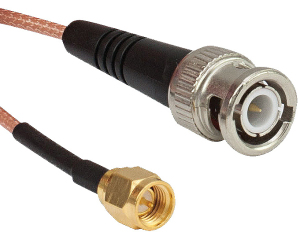

BNC-to-SMA
3D model uses WebGL. For best results use Chrome browser with decent GPU.
Ready to Go
Plug the SMA into the UC10x transponder and the BNC into any BNC transponder antenna (e.g., UC331, UC332) and it is ready to go.
Field Tested
This cable—combined with the BNC Monopole Antenna—have proven range even on the smallest UAV with composite contruction.
| Length | 12" (0.32 meters) |
| Frequency | DC to 2 GHz |
| Impedance | 50 Ohms |
| Insertion Loss @ 1 GHz | 0.3 dB typ, 0.5 dB max |
| Cable Type | RG316 Coax |
| Termination #1 | SMA Male |
| Reverse Polarity | No |
| Cycles | 40 |
| Termination #2 | BNC Male |
| Cycles | 25 |
- UC322 Antenna Cable, BNC-to-SMA
- Test Data (with cable loss)
- Certificate of Conformance (CoC)
