GPS w/ CAN
UC204

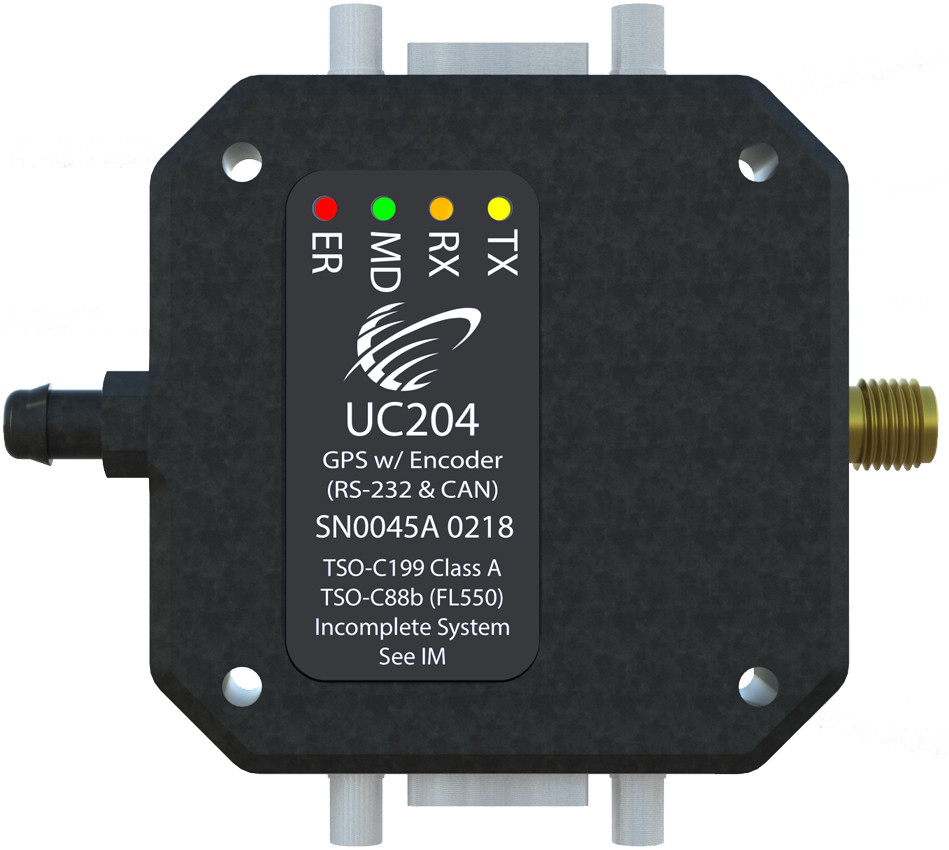

Altitude Encoder & GPS w/CAN
Part Number: 20-040-00
Coming Soon
Contact Us for Pre-OrdersPATENT PENDING
3D model uses WebGL. For best results use Chrome browser with decent GPU.
Overview
The Urban Canyon UC204 Altitude Encoder & GPS with CAN is designed for operation with UC10x series of transponders, ADS-B, and TABS devices. The UC20x sensors are designed specifically for the commercial unmanned air vehicle (UAV) market, where low cost and small size are at a premium.
The UC204 is intended for customers without an existing static pressure and/or GPS sensor solutions.
Cutting Edge Performance
The UC20x series encoders and GPS devices are sensor optimized for small device size and low power.
Low Cost
Designed with a "cost first" approach, this device is able to sell for a fraction of competitive devices without compromising performance.
Low Power Consumption
Intelligent internal power switching ensures sub-circuit power applied only as required.Small Size and Weight
1.85" x 1.85" x 0.45" (47 x 47 x 11 mm) and 30 grams typical.
Specification Data Required by FAA
Excerpt from the Installation Manual (IM), which contains information specifically for type-certified (manned) aircraft installers.
| Type |
Altitude Encoder with GPS |
| UC10x Interface (J2) |
COM0: RS-232
COM1: RS-232 |
| Host Interface (J1) |
COM2: RS-232 COM3: CAN V2.0b |
| RS-232 |
2.4–115.2kbps (configurable)
Protocol: 8N1 Levels: per TIA/EIA-232-E Bootloader: YES |
| Controller Area Network (CAN) |
CAN HS
Version: 2.0B (ISO-11898-2) Speed: up to 2Mbit/s Bus Wake-up: YES (ISO-11898-5) Hysteresis: 90 mV Mode: Slave Bootloader: YES |
| Design Approval* | FAA TSO-C88b
FAA TSO-C199 Class A |
| MOPS | SAE AS8003
FAA TSO-C199 |
| Software | RTCA/DO-178C Level C |
| Environmental** | RTCA/DO-160G |
| Supply Voltage | 5 VDC (from UC10x) |
| ESD Protection | All external connections
±15kV IEC 10000-4-2 Air Discharge ±8kV IEC 1000-4-2 Contact Discharge ±15kV Human Body Model (HBM) |
| Power Requirement (5V) |
1 mW typ (powerdown) 50 mW typ 200 mW absolute max |
| Operating Temperature | -40°C to +70°C |
| Altitude | 55,000 feet (16,764 meters) max |
| Weight | 30 grams (0.07 lb.) max |
| Dimensions (Body) |
Length: 1.85" (47 mm) Width: 1.85" (47 mm) Height: 0.45" (11 mm) |
| Dimensions w/ Connectors |
Length: 2.5" (64 mm) Width: 2.24" (57 mm) Height: 0.45" (11 mm) |
| Static Pressure Connection |
Tube Size: 0.17" (4.3 mm) ID
Barbed: YES McMaster 5058K232 |
| GPS Connection |
SMA Female
Active Antenna: SUPPORTED Antenna Bias Voltage: 4.5V typ |
**When powered from UC10x
SPECIFICATIONS SUBJECT TO CHANGE
- UC204 Altitude Encoder & GPS with CAN
- Certificate of Conformance (CoC)
Contact us for more information
