Nylon Braid, Screw Lock
Plug and Play

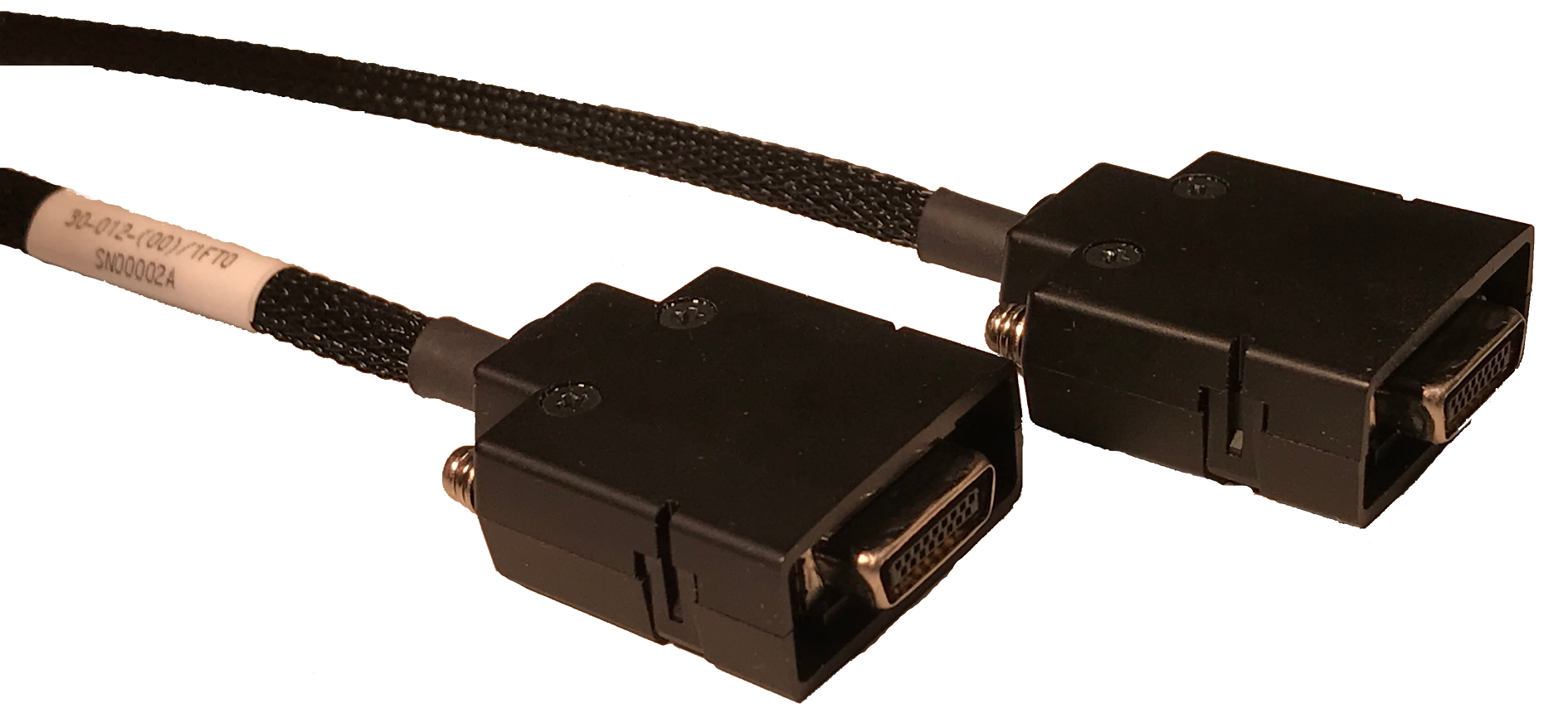

Ready-to-order and fully-assembled cable mate compatible with the UC10x series of transponders and the UC20x series of peripherals. The pinout is simple (Pin 1 to Pin 1, Pin 2 to Pin 2, ..., Pin 17 to Pin 17) and is great for both first-time users and volume production alike.
Rugged
Cable is mechanically fastened through two jackposts using two M2 screws.
Minimized Weight
Cable uses nylon cable wrap to minimize weight (if cable shielding is a requirement, see alternate cable options with metal braid).
Customizable
Available in lengths from 0.5 ft to 6 ft. Contact us for different lengths and/or pinout suitable to your requirements.
| Cable Length | 2 feet* |
| Locking | Yes (jackposts) |
| Lock Type | Screw Lock |
| Circuits (Loaded) | 17 |
| Pinout | Pin 1 to Pin 1
Pin 2 to Pin 2 ... Pin 17 to Pin 17 |
| Braid | Nylon |
| Shielded | No** |
| Net Weight | 28 grams |
| Packaging Type | Bag |
| Wire Size | AWG 28 |
| Current Rating | 0.5 Amps |
| Mating/Unmating Cycles | 1,000 |
| Rated Voltage | 125 Volts |
| Materials | See drawing |
| Mates With | Hirose DH60-17P (PCB mount) |
| *Also available in: 0.5 ft. to 6ft. (2 ft. default) | |
| **Unshielded to save weight. For shielded cables, see options with metal braid. | |
- UC312 Interface Cable, Nylon Braid, Screw Lock
- Certificate of Conformance (CoC)
Login required. Please Contact Us to access downloads, FAQs, articles, help desk support, and more through our Support Portal.
Documentation
UC312 Drawing, Interface Cable, Nylon Braid, Screw Lock.pdf
Volume Customer/OEM Information
UC312 Product Change Notices.pdf ← NO PCNs YET, STILL VERSION -00. Sign up here for automatic email notifications.
Urban Canyon Quality Manual.pdf ← COMING SOON
