Metal Braid, Screw Lock
Plug and Play

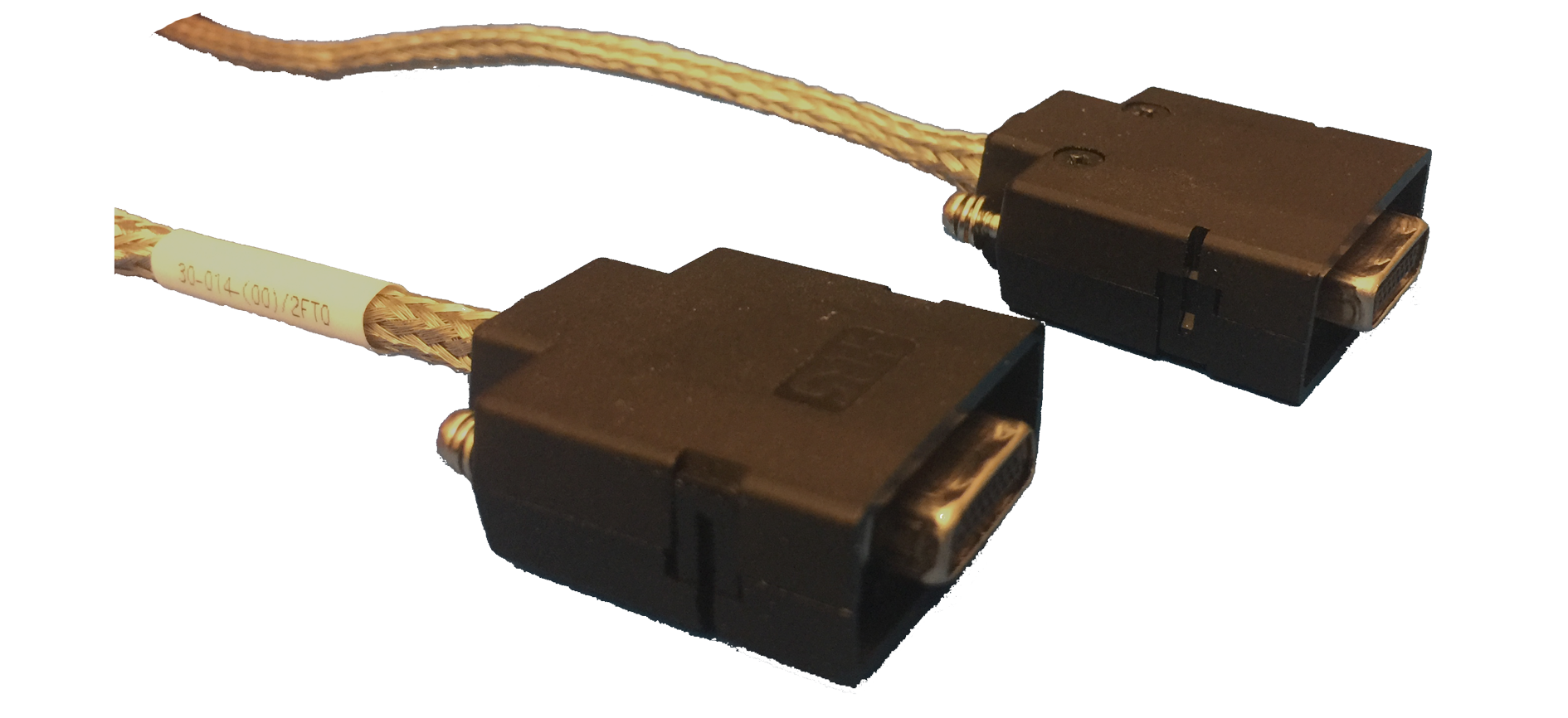

Ready-to-order and fully-assembled cable mate compatible with the UC10x series of transponders and the UC20x series of peripherals. The pinout is simple (Pin 1 to Pin 1, Pin 2 to Pin 2, ..., Pin 17 to Pin 17, Shield to Shield) and is great for both first-time users and volume production alike.
Rugged
Cable is mechanically fastened through two jackposts using two M2 screws. This is the same cable used for environmental testing (temperature and EMC) so you will not be disappointed.
Fully Shielded
Cable uses metal cable wrap to electrically isolate the cable from noise (if cable shielding is not a requirement, see alternate cable options with nylon braid to minimize weight).
Customizable
Available in lengths from 0.5 ft to 6 ft. Contact us for different lengths and/or pinout suitable to your requirements.
| Cable Length | 2 feet* |
| Locking | Yes (jackposts) |
| Lock Type | Screw Lock |
| Circuits (Loaded) | 17+Shield |
| Pinout | Pin 1 to Pin 1
Pin 2 to Pin 2 ... Pin 17 to Pin 17 Shield to Shield |
| Braid | Metal |
| Shielded | Yes** |
| Net Weight | 34 grams |
| Packaging Type | Bag |
| Wire Size | AWG 28 |
| Current Rating | 0.5 Amps |
| Mating/Unmating Cycles | 1,000 |
| Rated Voltage | 125 Volts |
| Materials | See drawing |
| Mates With | Hirose DH60-17P (PCB mount) |
| *Also available in: 0.5 ft. to 6ft. (2 ft. default) | |
| **Shielded to increase EMC. To save weight, see options with nylon braid. | |
- UC314 Interface Cable, Metal Braid, Screw Lock
- Certificate of Conformance (CoC)
Login required. Please Contact Us to access downloads, FAQs, articles, help desk support, and more through our Support Portal.
Documentation
UC314 Drawing, Interface Cable, Metal Braid, Screw Lock.pdf
Volume Customer/OEM Information
UC314 Product Change Notices.pdf ← NO PCNs YET, STILL VERSION -00. Sign up here for automatic email notifications.
Urban Canyon Quality Manual.pdf ← COMING SOON
