Breakout Board
3D model uses WebGL. For best results use Chrome browser with decent GPU.
Applications

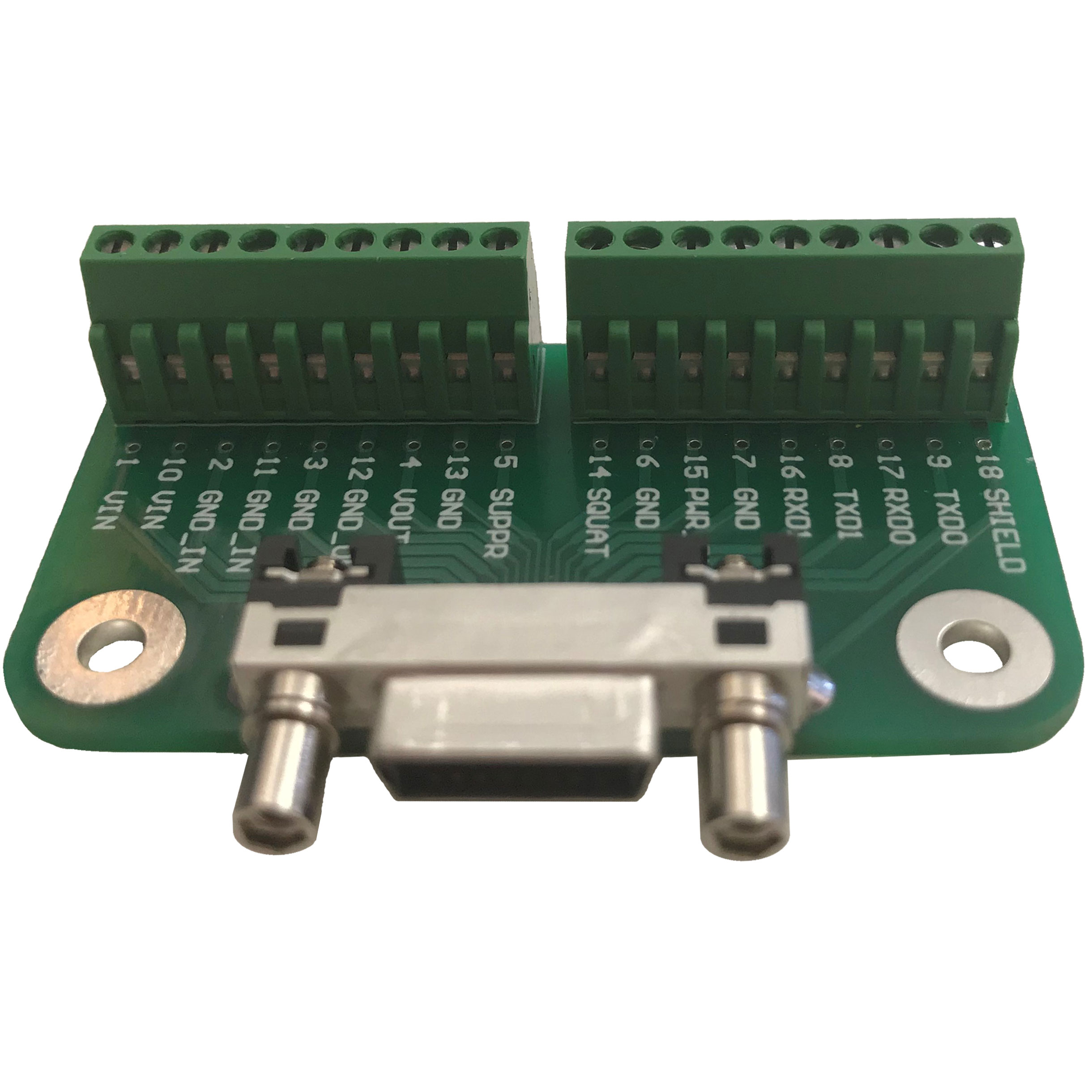

The UC301 breakout board provides a simple method to connect to a transponder electrically, avoiding the need to build a custom cable. The UC301 is designed to facilitate integrators during the prototype phase.
Easy to Use
Simply connect the UC301 breakout board to one end of any interface cable (e.g., UC312, UC313, UC314, UC315), connect the other end of the interface cable to a UC10x transponder or a UC20x peripheral, and you have full access to all electrical connections via the easy-to-use screw terminal blocks.Conveniently Labeled
Each connection has a silkscreen label indicating the pin number and net name.
Connects to Anything
The terminal block accepts wire gauge 16 – 30 AWG, easily accommodating almost anything you would want to connect. Furthermore, in addition to the terminal blocks, each circuit has one 0.02" (0.5 mm) plated through hole (PTH), accommodating soldering of 28 awg wire directly to the PCB.
Easy Mounting
The board has two 0.125" (3.175 mm) diameter holes to accommodate two #4 screws (M2.5 metric screws). Screws not included.
The UC301 breakout board is intended to assist integrators during prototype and testing.
| PCB Size | 2.0" x 1.1" (50.8 x 27.9 mm) |
| PCB Electrical Layers | 2 |
| PCB Nets | 18 |
| Mounting Holes | 2x 0.125" (3.175 mm) dia. |
| Mounting Screws | #4 ANSI / M2.5 metric (not included) |
| Terminal Block – Pitch | 0.100" (2.54 mm) |
| Terminal Block – Wire Gauge | 16 – 30 awg |
| Terminal Block – Rated Current | 10 Amps |
| PTH – Wire Gauge | 28 – 30 awg |
| Connector PN #1 | TE Connectivity 282834-9 |
| Connector PN #2 | Hirose DH60-17P |
| Jackposts | Yes, 2x (included) |
| Jackpost PN | Hirose DH-LNA-W16 |
- UC301 Breakout Board
- 2 pcs Hirose DH-LNA-W16 jackposts
- Certificate of Conformance (CoC)
Login required. Please Contact Us to access downloads, FAQs, articles, help desk support, and more through our Support Portal.
Electrical Computer-Aided Design (ECAD) Files
UC301 Breakout Board, Schematic.PDF
UC301 Breakout Board, Altium Designer 17 SRC.zip ← Includes layout (*.PcbDoc), schematic (*.SchDoc), project (*.PrjPcb) etc.
Mechanical Computer-Aided Design (MCAD) Files
UC301 Breakout Board, MCAD 3DPDF.PDF ← 3D model with silk & trace detail (3DPDF only requires free Adobe Reader). Note: save file LOCALLY FIRST, or Adobe won't open it correctly .
UC301 Breakout Board, MCAD SolidWorks 2018.SLDASM
UC301 Breakout Board, MCAD IGES.IGS
PCB Fabrication Files (Gerbers)
UC301 Breakout Board, RS-274X Fab Gerbers.zip
UC301 Breakout Board, ODB Gerbers.zip
Assembly Files
UC301 Breakout Board, Bill of Materials.xlsx
UC301 Breakout Board, PCB Assembly Drawing (SCALED).PDF
UC301 Breakout Board, PCB Assembly Drawing (ZOOMED).PDF
Supporting Documentation
UC301 Breakout Board, PCB Pics.pdf
UC301 Breakout Board, Part Datasheets.zip ← Includes datasheets for connectors & jackposts
Volume Customer/OEM Information
UC301 Product Change Notices.pdf ← NO PCNs YET, STILL VERSION -00. Sign up here for automatic email notifications.
Urban Canyon Quality Manual.pdf ← COMING SOON
