Overview

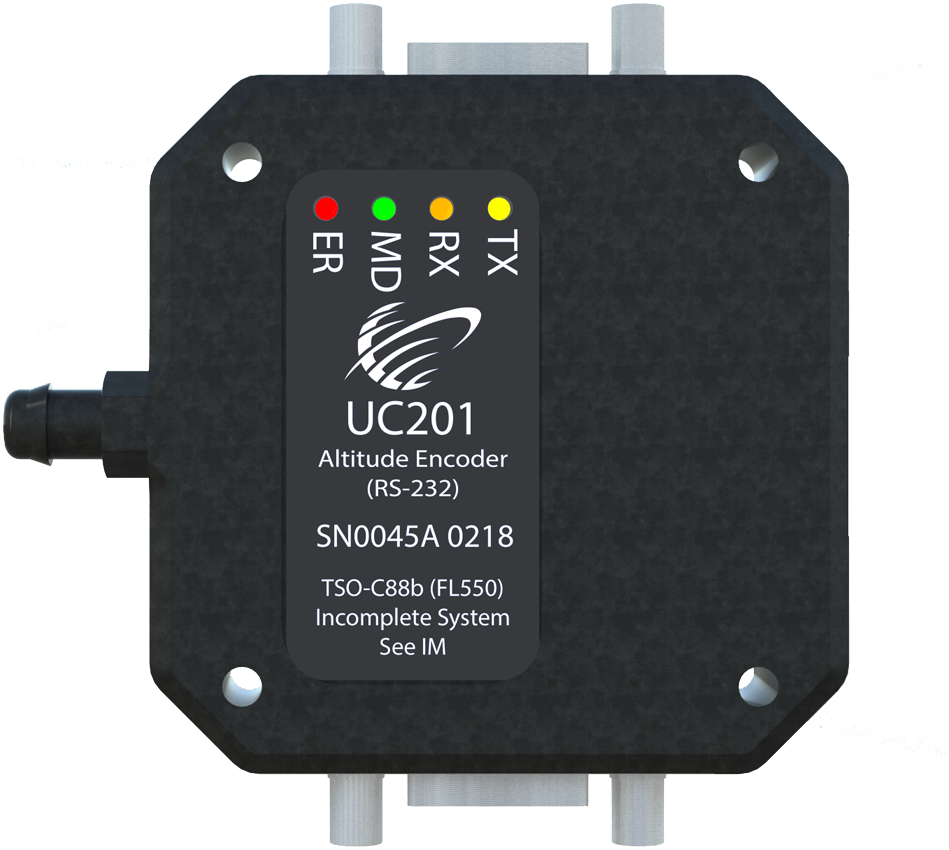

The Urban Canyon UC201 Altitude Encoder is designed for operation with UC10x series of transponders, ADS-B, and TABS devices. The UC20x sensors are designed specifically for the commercial unmanned air vehicle (UAV) market, where low cost and small size are at a premium.
The UC201 is intended for customers without an existing static pressure sensor solution.
Cutting Edge Performance
The UC20x series encoders and GPS devices are sensor optimized for small device size and low power.
Low Cost
Designed with a "cost first" approach, this device is able to sell for a fraction of competitive devices without compromising performance.
Low Power Consumption
Intelligent internal power switching ensures sub-circuit power applied only as required.Small Size and Weight
1.85" x 1.85" x 0.45" (47 x 47 x 11 mm) and 30 grams typical.
Specification Data Required by FAA
Excerpt from the Installation Manual (IM), which contains information specifically for type-certified (manned) aircraft installers.
| Type |
Altitude Encoder |
| UC10x Interface (J2) |
COM0: RS-232
COM1: RS-232 |
| Host Interface (J1) |
COM2: RS-232 COM3: RS-232 |
| RS-232 |
2.4–115.2kbps (configurable)
Protocol: 8N1 Levels: per TIA/EIA-232-E Bootloader: YES |
| Controller Area Network (CAN) |
N/A |
| Design Approval* | FAA TSO-C88b |
| MOPS | SAE AS8003 |
| Software | RTCA/DO-178C Level C |
| Environmental** | RTCA/DO-160G |
| Supply Voltage | 5 VDC (from UC10x) |
| ESD Protection | All external connections
±15kV IEC 10000-4-2 Air Discharge ±8kV IEC 1000-4-2 Contact Discharge ±15kV Human Body Model (HBM) |
| Power Requirement (5V) |
1 mW typ (powerdown) 50 mW typ 200 mW absolute max |
| Operating Temperature | -40°C to +70°C |
| Altitude | 55,000 feet (16,764 meters) max |
| Weight | 30 grams (0.07 lb.) max |
| Dimensions (Body) |
Length: 1.85" (47 mm) Width: 1.85" (47 mm) Height: 0.45" (11 mm) |
| Dimensions w/ Connectors |
Length: 2.24" (57 mm) Width: 2.24" (57 mm) Height: 0.45" (11 mm) |
| Static Pressure Connection |
Tube Size: 0.17" (4.3 mm) ID
Barbed: YES McMaster 5058K232 |
**When powered from UC10x
SPECIFICATIONS SUBJECT TO CHANGE
